Double Side Surface Planer

Wood is in Our Blood , Wood is Our World

Powerful m/c with good stability & shock absorbing capacity, improved cutting quality & variable feed speed

Powerful cutting capacity
Good shock-absorb and stable Cast Iron quality
Independent heavy duty motors for both Spiral cutter rolls
Spiral cutter rolls improve cutting quality & speed
Variable feed speed
Numerical display unit for thickness setting Auto lubrication device keeps the machine always lubricated during working

Model No.
J-4430 (S), J-4630 (S)

Watch Video

Download Catalouge

Heavy Duty, High Quality with Spiral Cutter Roll

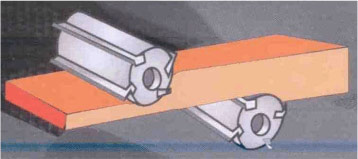

Top & Bottom 6 line spiral steel cutter roll as standard accessory

Machine Specifications - J-4430 & J-4630

Specifications - J-4430(S) & J-4630(S)
Specifications	Unit	J-4430(S)	J-4630(S)
Working width	mm	430	630
Working thickness	mm	200	200
Min. working length	mm	260	260
Max. cutting depth (Top cutter roll)	mm	8	8
Max. cutting depth (Bottom cutter roll)	mm	5	5
Cutter roll diameter	mm	101Φ	101Φ
Spindle speed	rpm	5000	5000
Variable feed speed	m/min	0 - 16	0 - 16
Feed motor	hp	3	4
Top cutter roll motor	hp	10	15
Bottom cutter roll motor	hp	10	10
Feeding unit up-down motor	hp	0.5	0.5
Total Power	hp	23.5	29.5

Note :

S=Spiral Roll Model J-4430 & J-4630 without spiral roll also available Use Dust Colector with m/c for superior performance
