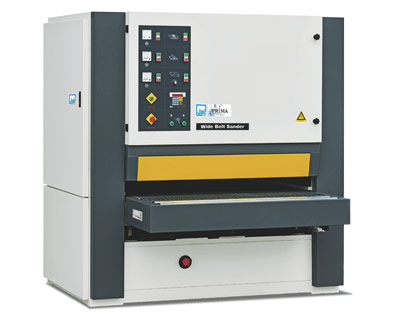

Model J-1300 R-RP : This wide belt sander is designed for three functions: thickness calibration, surface sanding and fine surface polishing. The two sanding belt can be used at the same time, or you can only use the 1st sanding belt or only used the 2nd sanding belt separately. Besides, the polishing pad can be adjusted up-and-down to change the pressure according to different work piece.
| Model No. | Unit | J-1300 RP | J-1300 R-RP |
|---|---|---|---|
| Working width | mm | 40 - 1300 | 40 - 1300 |
| Min. working length | mm | 580 | 580 |
| Working thickness | mm | 2.5 - 150 | 2.5 - 150 |
| Sanding belt speed (Front) | m/s | 18 | 24 |
| Sanding belt speed (Rear) | m/s | n/a | 18 |
| Feeding speed | m/min | 0 - 19 | 0 - 19 |
| Front roller diameter | mm | 210 | 240 |
| Rear roller diameter | mm | n/a | 210 |
| Main motor power | kw | 18.5 | 22 + 15 |
| Feed belt motor power | kw | 3 | 3 |
| Working table motor power | kw | 0.37 | 0.37 |
| Brush motor power | kw | 0.25 | 0.25 |
| Air pressure required | kg/cm² | 5 to 7 | 5 to 7 |
| Total power | kw | 22.12 | 40.62 |
