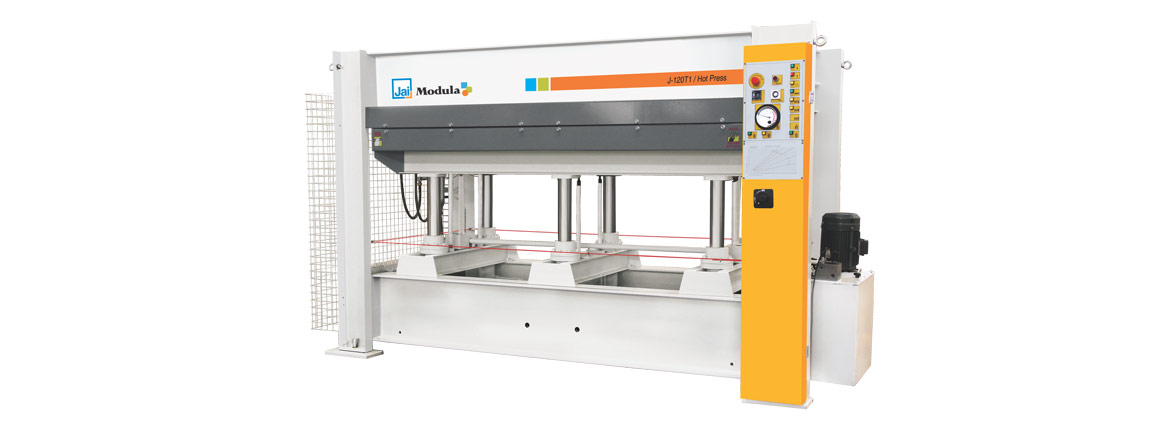

Control panel for controls and display with digital temperature controllers and adjustable timers for fully automatic cycle
| Model No | Unit | J-120T1 | J-120T3 |
|---|---|---|---|
| Max. Load / Pressure Rating | Ton / kg·cm² | 120 / 3.6 | 120 / 3.6 |
| Platen Size | mm | 2500 × 1300 × 42 | 2500 × 1300 × 42 |
| Numbers Of Layers | nos | One | Three |
| Opening between layers | mm | 380 | 100 |
| No of Hydraulic Cylinders | nos | 6 | 6 |
| Size of Hydraulic Cylinders | mm | 90 Φ | 90 Φ |
| Heating Power | kW | 18 | 27 |
| Hot oil Delivery Pump Power | kW | 1.12 | 1.12 |
| Hydraulic Pump Power | kW | 4 | 4 |
| Total Power | kW / hp | 23.12 / 30.82 | 32.12 / 42.82 |
| Machine dimension (L × B × H) | mm | 3650 × 1650 × 2500 | 3650 × 1650 × 2500 |
