The whole world of Panel Processing machines

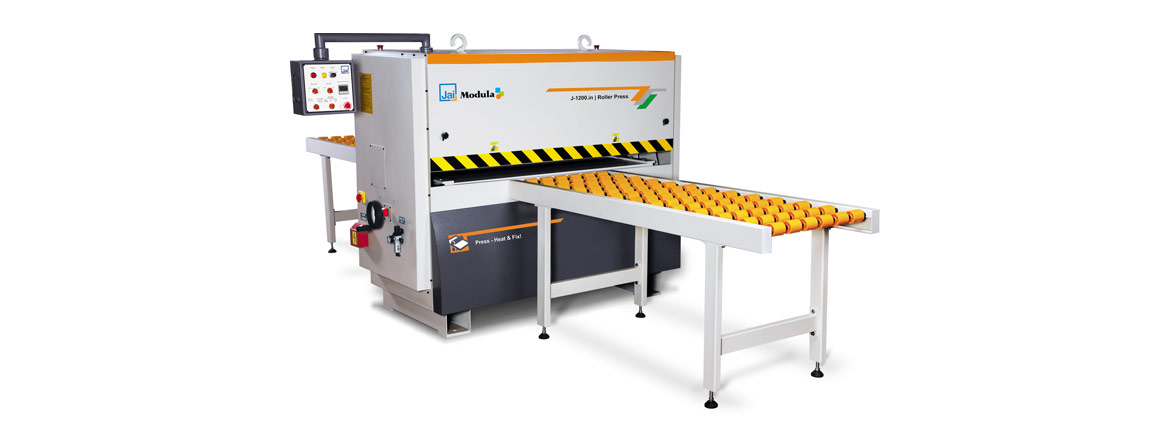

Roller Press
J-1200.in (Auto)

Standard Features :-


  • It is used to cover laminates / papers / acrylics / veneers / pvc foil on the materials such as MDF, particle board / plywood
  • It is appropriate for mass production as it is a continuous system
  • Hard rubber rollers and four heater elements, that ensures perfect fix of laminates on board
  • Motorized up / down movement for thickness adjustment.
  • No waiting period like other press, no limit to the work piece length, easy to use
  • Consumes less energy as compare to other press
  • Adjusting roller speed and temperature is necessary for best results

Easy accessible mobile control panel at machine in-feed provides convenient operation of the machine for controls & display

Provision of hand wheel for manual setting of work piece thickness

With its in-feed and out-feed wide conveyors, it becomes a continuous production system suitable for mass production

J-1200.in — Specifications
J-1200.in — Technical Specifications
Model No Unit J-1200.in
Maximum Workpiece widthmm1360
Maximum Workpiece thicknessmm80
Workpiece feedm/min1 to 7
Air Pressure requirekg/cm²5 to 7
Heating elementkW4.0
Roller up-down motorhp0.5
Roller drive motorhp1.0
Total Powerhp6.83
Machine dimension (L × B × H)mm4800 × 2350 × 1700
