The whole world of Panel Processing machines

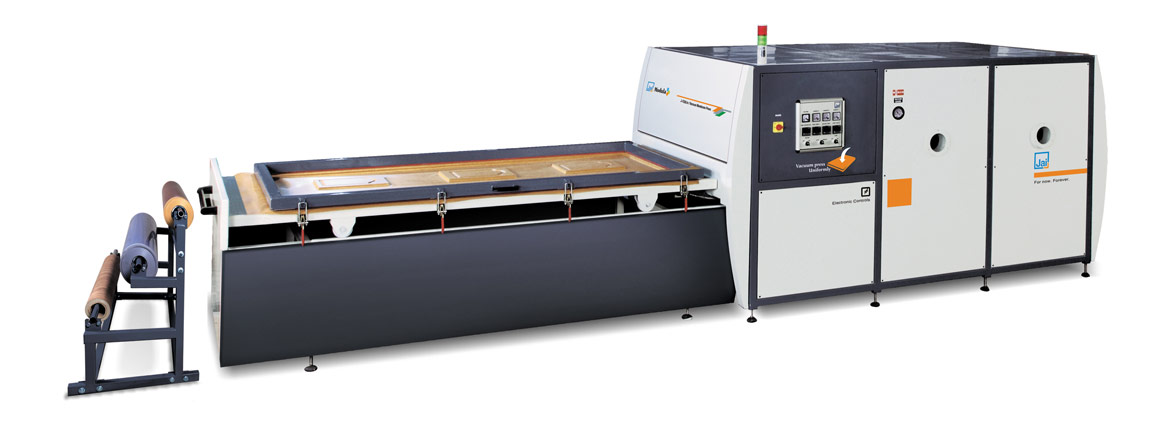

Vacuum Membrane Press-Single Trolley J-1250.in
Salient Features :-
- Used for applying a uniform lamination of PVC, decorative papers and veneer till 0.4 mm on top surface and borders on flat & designed work piece having smooth shape
- Vacuum wrapping technology having single table
- Lamination of PVC foil on one side of MDF, particle board & solid wood
- Silicon membrane offered for veneer application
- Short pressing cycles
- More efficient, stable and long life high grade 3 hp – GERMAN vacuum pump, which reduce the cycle time with more effective pressing.
- Silicon membrane sheet is standard supply with the machine
- We will provide one set of tray minimizer for optimum usage of work tray along with the machine
Centralized control panel for controls and display with digital temperature controllers and adjustable timers for fully automatic cycle
Manual feed of tray for loading Special steel work table is proof against high temperature and corrosion PVC foil roll holder with stand which can hold 3 different roll at a time
Heating by infrared bulbs
Single sided frame clamps for quicker operation
Additional 2nd trolley (optional) can be ordered any time separately
| Model No | Unit | J-1250.in |
|---|---|---|
| No. of working tables | no | 1 |
| Work table size (L × B) | mm | 2500 × 1250 |
| Max. height of work piece | nos | 50 |
| Vacuum | mpa | -0.1 |
| Heating load | hp | 24.8 |
| Total power (3 Phase) | hp | 12 |
| Machine dimension (L × B × H) | mm | 6800 × 1850 × 1500 |
| Approx. net weight | kg | 1200 |
