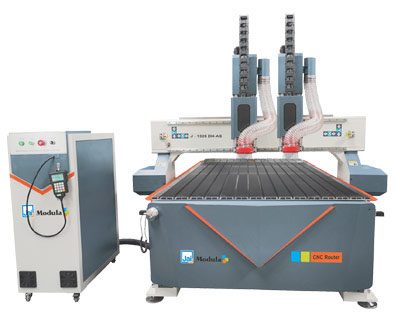

Double Head CNC Router J-1325 (DH-AS) (Asynchronous) With Stepper Motor
Quality Double Head CNC model, that allows you high production efficiency, good processing quality with affordable install and operating cost
Salient Features :-
- “Hiwin” Taiwan linear guide rail with high precision
- Heavy ball screw with high accuracy
- Two spindle head units on same gantry, so the process will be done either same or different work as per programmed
- Digital Signal Processing for control system
- Stepper Motors with Invertor
- Stronger and larger helical rack & pinion gear drive
- Steel structure with six legs makes our routers more stable
- Lubrication makes maintenance much easier
- Compatible Software : Compatible various CAD/CAM software like ; Art Cam/ Type 3
Tool holding guide system :
A precision system to carry the CNC design commands. This Auto-Sliding guide system allows great design flexibility. "Hiwin" Taiwan heavy duty high precision linear guide rail
Control System :
A convenient, separate control panel box allows flexibility and efficiency in machine operating. Digital Signal processing is applied here as the controlling system.
Stronger and larger helical rack & pinion gear drive
Precision Vacuum Table :
Vacuumed fixing and sure clamping of the workpiece, to ensure steadiness during the entire routing operations
J-1325 DHA-S / J-1325 VT DHA-S - Specifications
| Model No | Unit | J-1325 DHA-S (Asynchronous) Stepper Motor | J-1325 VT DHA-S (Asynchronous) Stepper Motor |
|---|---|---|---|
| X – Y – Z axis working area | mm | 1300 × 2500 × 200 | 1300 × 2500 × 200 |
| Traveling Positioning Accuracy | mm | ±0.1 mm | ±0.1 mm |
| X – Y Working Delicacy | mm | ≤0.05 mm | ≤0.05 mm |
| X – Y movement | - | Rack & pinion gear drive | Rack & pinion gear drive |
| Z movement | - | Ball screw | Ball screw |
| Body structure | - | Steel structure with six legs | Steel structure with six legs |
| Maximum speed | mm/min | 35,000 | 35,000 |
| Maximum cutting speed | mm/min | 25,000 | 25,000 |
| Spindle | kw/rpm | 2 × 3.5 kw / 18000 rpm Air cooled spindle | 2 × 3.5 kw / 18000 rpm Air cooled spindle |
| Drive motors | - | Stepper | Stepper |
| Inverter | kw | 3.7 | 3.7 |
| Guide rail | - | "Hiwin" Taiwan heavy duty high precision linear guide rail | "Hiwin" Taiwan heavy duty high precision linear guide rail |
| Working voltage | - | AC 380V / 50Hz, 3φ | AC 380V / 50Hz, 3φ |
| Command code | - | G Code | G Code |
| Computer interface | - | USB 2.0 | USB 2.0 |
| Collet type & size | - | ER25 | ER25 |
| Compatible Software | - | Art Cam / Type 3 | Art Cam / Type 3 |
| Controls | - | Digital signal processor (DSP) A11E | Digital signal processor (DSP) A11E |
| Oil lubrication system | - | Manual | Manual |
| Vacuum table | - | n/a | Standard with 5.5kw Water cooled vacuum pump |
| Total Power | hp | 12 | 14 |
| Machine dimensions (L × B × H) | mm | 3200 × 3500 × 1800 | 3200 × 3500 × 1800 |
| Approx. net weight | Kg | 1400 | 1500 |
