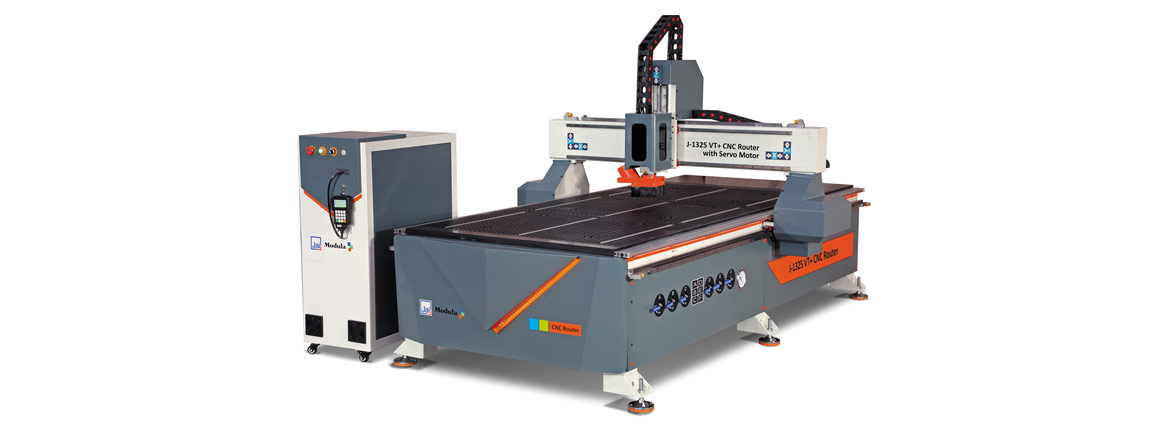

CNC Router J-1325 VT + With Servo Motor
Salient Features :-
- “Hiwin” Taiwan heavy duty linear guide rail with high precision
- Heavy ball screw with high accuracy
- Digital Signal Processing for control system
- Servo Motors with Invertor
- Stronger and larger helical rack & pinion gear drive
- Steel structure with six legs makes our routers more stable
- Lubrication makes maintenance much easier
- Precision vacuum table with 5.5 kw heavy duty water cooled vacuum pump
- Compatible Software : Compatible various CAD/CAM software like ; Art Cam/ Type 3
Tool holding guide system :
A precision system to carry the CNC design commands. This Auto-Sliding guide system allows great design flexibility. "Hiwin" Taiwan heavy duty high precision linear guide rail
Control System :
A convenient, separate control panel box allows flexibility and efficiency in machine operating. Digital Signal processing is applied here as the controlling system.

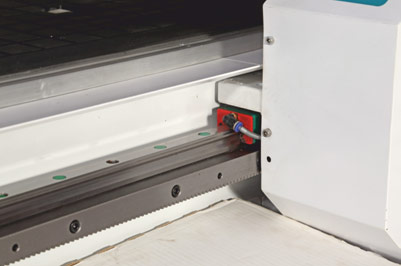

Stronger and larger helical rack & pinion gear drive
Precision Vacuum Table :
Vacuumed fixing and sure clamping of the workpiece, to ensure steadiness during the entire routing operations
5.5 kw heavy duty water cooled vacuum pump

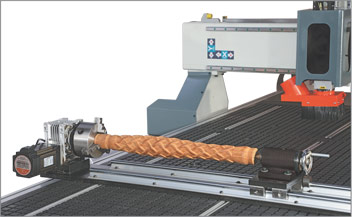

Rotary attachment (Optional)
J-1325 VT & J-1325+ With Servo Motor — Specifications
| Model No | Unit | J-1325 VT - With Servo Motor | J-1325+ - With Servo Motor |
|---|---|---|---|
| X-Y-Z axis working area | mm | 1300×2500×200 | 1300×2500×200 |
| Traveling positioning accuracy | mm | ±0.05 | ±0.05 |
| X-Y working delicacy | mm | ±0.01 | ±0.01 |
| X-Y movement | - | Rack & pinion gear, Shaft linear bearings | Rack & pinion gear, Shaft linear bearings |
| Z movement | - | Heavy duty ball screw, Shaft linear bearings | Heavy duty ball screw, Shaft linear bearings |
| Body structure | - | Steel structure with six legs | Steel structure with six legs |
| Maximum speed | mm/min | 35,000 | 35,000 |
| Maximum cutting speed | mm/min | 25,000 | 25,000 |
| Spindle | kw/rpm | 3.5 kW / 18000 rpm Air Cooled Spindle | 3.5 kW / 18000 rpm Air Cooled Spindle |
| Drive motors | - | Servo | Servo |
| Inverter | kw | 3.7 | 3.7 |
| Guide rail | - | "Hiwin" Taiwan heavy duty high precision linear guide rail | "Hiwin" Taiwan heavy duty high precision linear guide rail |
| Working voltage | - | AC 380V / 50Hz, 3φ | AC 380V / 50Hz, 3φ |
| Command code | - | G Code | G Code |
| Computer interface | - | USB 2.0 | USB 2.0 |
| Collet type & size | - | ER25 (1/2”, 6, 3.175) | ER25 (1/2”, 6, 3.175) |
| Compatible Software | - | ArtCam / Type 3 | ArtCam / Type 3 |
| Controls | - | Digital signal processor (DSP) A11E | Digital signal processor (DSP) A11E |
| Oil lubrication system | - | Manual | Manual |
| Table | - | Standard with 5.5kw Water cooled vacuum pump | n/a |
| Total Power | hp | 18 | 18 |
| Machine dimensions (L×B×H) | mm | 3200×3500×1800 | 3200×3500×1800 |
| Approx. net weight | Kg | 900 | 800 |
