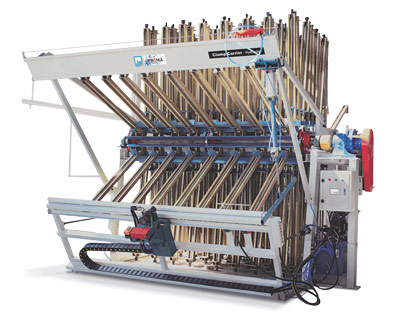

Clamp Carrier - Hydraulic

Heavy duty clamps provide powerful, uniform & fast clamping. Minimize operator fatigue & maximize productivity

  • Model No.
  • J-1408 (H), J-2008 (H)
Watch Video
Download Catalouge
The Pneumatic Panel Flattener is designed to hold down the stock flat while each clamp is tightened.
The machine equipped with hydraulically operated clamp tighteners, providing extremely powerful, uniform and fast clamping performance.
Super heavy duty clamps with zinc plated corrosion resistant, rails and screws provide super strength and durability. Clamps have a high jaw.
Heavy-duty worm reducer insures control indexing, even when rotating on unbalanced load. The chain for rotation feeding is heavy-duty and stable.
J-1408 H & J-2008 H Specifications
Specifications
Specifications Unit J-1408 H J-2008 H
Max. pressing length mm 2600 2600
Max. pressing width mm 1250 1250
Pressing thickness mm 10 - 90 10 - 90
No of sections no 14 Rows 20 Rows
No of clamps per each section no 8 8
No hold down bar No 1 1
No of pneumatic motor gun Set 1 1
Voltage & rotary power hp 1.5 1.5
Hydraulic pump motor power hp 5 5
Approx. machine net weight kg 4800 6000
Overall dimension mm 4500 x 3800 x 3650 5000 x 3800 x 3650
