Model : J-2102.in

The whole world of Panel Processing machines

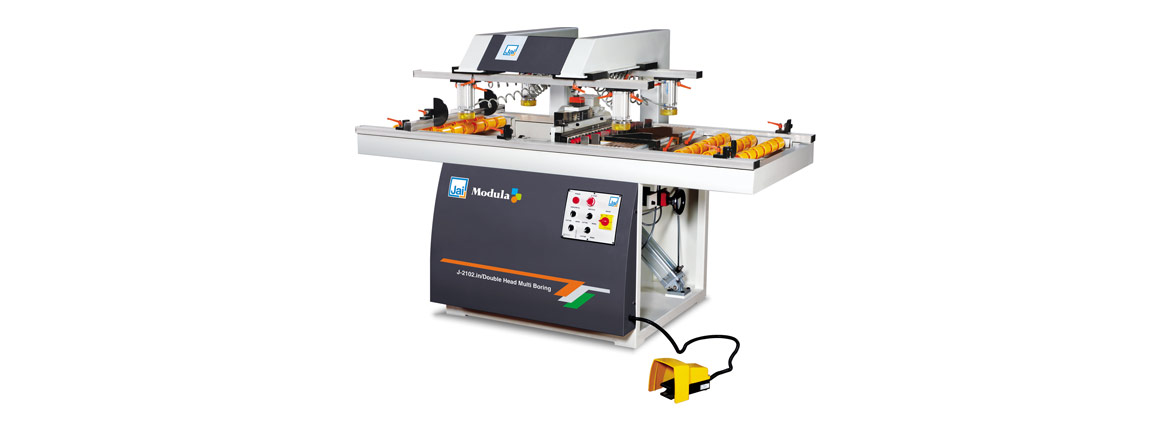

J-2102.in Double head Multi Boring (Semi Auto)

Salient Features :

Quick change spindles.
Strengthened frame to hold boring heads.
Horizontal & vertical head works simultaneously-one by one on the same setting in single operation.
Horizontal head tilts from 0° – 90° means work as vertical head, so the both head works parallel.
Adequate and effective pneumatic clamps.
Easy & quick setting to regulate drilling depth.
Elegantly designed, electro pneumatic control panel.
Reference supports with scale for long panels boring.
Foot switch for convenient operation of the m/c.

J-2102.in Specifications

Model No	Unit	J-2102.in
Max. working thickness	mm	70
Max. size of workpiece	mm	2000 × 640
No. of spindle head	no.	Two
No. of spindles per head	no.	21
Total Spindle	no.	21 + 21 = 42
Minimum Center Distance between 2 Vertical Heads	mm	392
Maximum Center Distance between 2 Vertical Heads	mm	472
Shank diameter of drill	mm	10
Drilling depth	mm	0 – 50 (Drill length 70 mm)
Elect. Motor / Total Power	no / hp	2 × 2 = 4
Machine dimension (L × B × H)	mm	2000 × 1220 × 1340
Approx. net weight	kg	500
