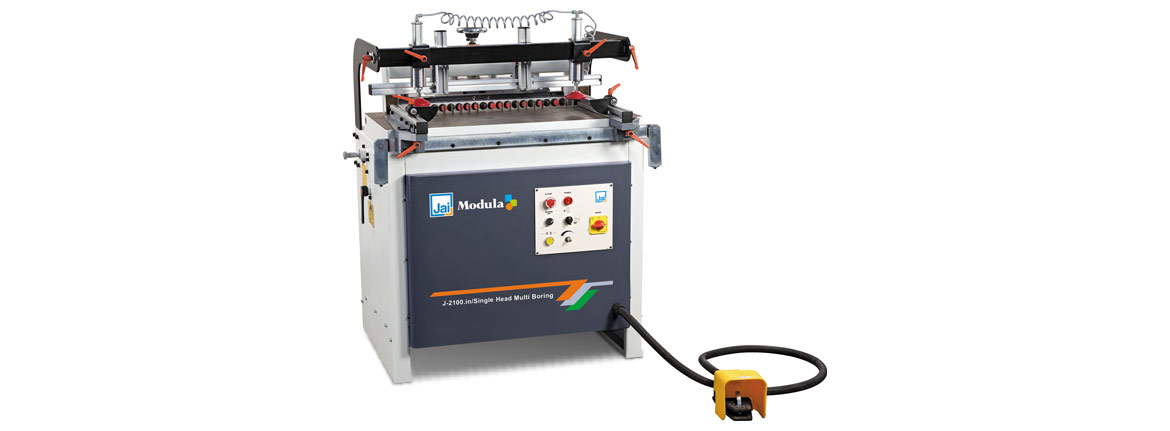

J-2100.in (2.0) Single head Multi Boring (Semi Auto)
Salient Features :
- Quick change spindles
- Strengthened frame to hold boring heads.
- Head assembly tilts from 0° – 90°
- Horizontal & vertical head works in two operations with different setting.
- Adequate and effective pneumatic clamps
- Easy & quick setting to regulate drilling depth
- Elegantly designed, electro pneumatic control panel
- Reference supports with scale for long panels boring.
- Foot switch for convenient operation of the m/c
Boring head with pneumatic tilting system horizontal / vertical & 45°
For vertical boring application
For horizontal boring application
| Model No | Unit | J-2100.in (2.0) |
|---|---|---|
| Max. working thickness | mm | 70 |
| Max. size of workpiece | mm | 2000 × 800 |
| No. of spindle head | nos | One |
| No. of spindles per head | nos | 21 |
| Shank diameter of drill | mm | 10 |
| Drilling depth | mm | 0 – 50 Drill length 70mm |
| Elect. Motor / Total Power | no / hp | 1 × 2 = 2 |
| Machine dimension (L × B × H) | mm | 1070 × 1220 × 1300 |
| Approx. net weight | kg | 400 |
