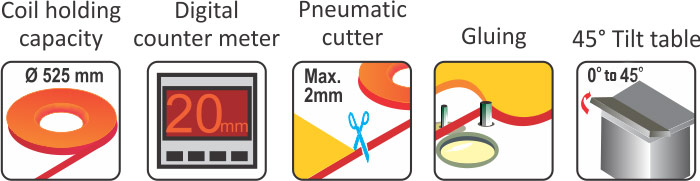

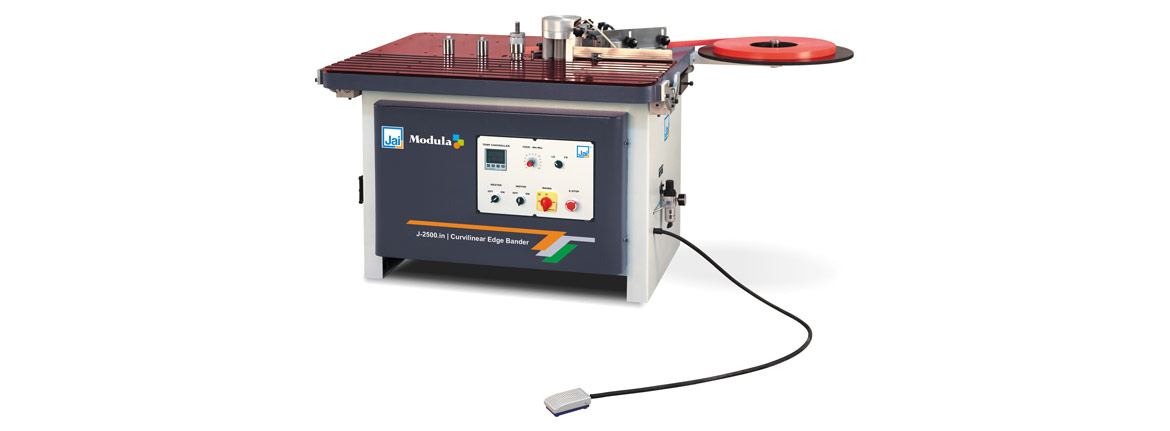

The glue in the glue pot, glue leveler, wiper, the extrusion screw and the heating element all make a bonding system, which gives an effective & efficient banding to the work piece.
A user friendly electro control panel which monitors & controls the operation
The pneumatic cutting device can be set to actuate the pneumatic cutter to cut the band
A specially designed hylum surface working table can be tilted from 0° & 45°
| Model No | Unit | J-2500.in |
|---|---|---|
| Table size (L x B) | mm | 1100 × 800 |
| Minimum work piece length | mm | 280 |
| Work piece thickness range | mm | 10 – 50 |
| Edge Banding Thickness for PVC / ABS in coil form | mm | 0.4 – 2.0 |
| Min. Radius for curved Edging | mm | 20 |
| Glue pot capacity | kg | 1.5 |
| Feed speed | m/min | 4 to 12 |
| Front table adjustment (Up & Down) | mm | 3 |
| Front table tilt angle | degree | 0° to 45° |
| Front table extension length | mm | Up to 200 |
| Maximum setting temperature | °C | 180°C |
| Compressed air requirement | kg/cm² | 0.5 / 5–7 |
| Heating element | kw | 1.5 |
| Electric motor | kw | 0.37 (415V, 3φ) |
| Power supply | voltage / φ | 415V / 3φ |
| Total Power | hp | 2.5 |
| Machine dimension (L × B × H) | mm | 1750 × 950 × 950 |
| Approx. net weight | kg | 240 |
