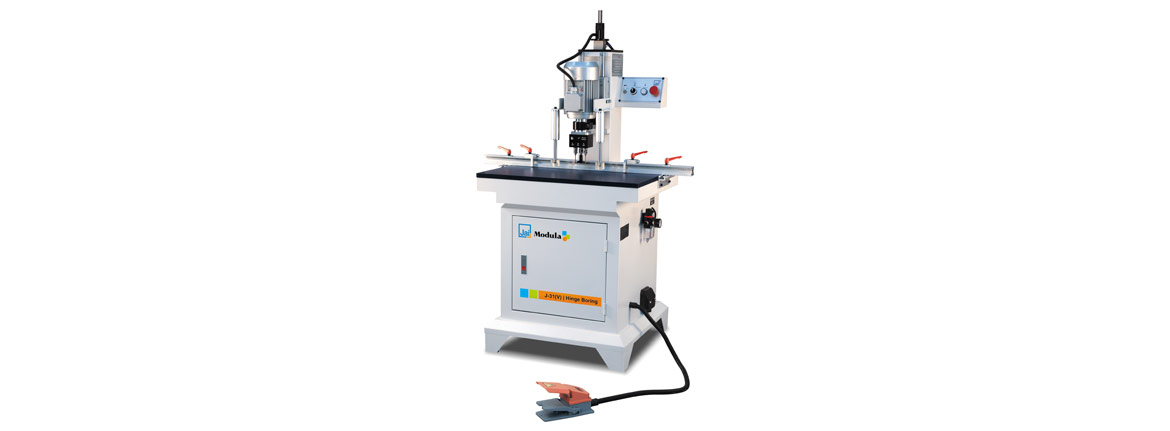

Hinge Boring J-31 (V)
Salient Features :
- Heavy duty frame to hold boring heads with Quick change spindles chucks.
- Easy setting for depth
- Elegantly designed, electro-pneumatic control panel.
| Model No | Unit | J-31 (V) |
|---|---|---|
| Max. working thickness | mm | 70 |
| No. of spindle head | nos | One |
| No. of spindles per head | nos | 3 |
| Shank diameter of drill | mm | 10 |
| Drilling depth | mm | 0 – 50 (drill length 70 mm) |
| Air pressure required | kg/cm² | 6 to 7 |
| Elect. Motor / Total Power | no/hp | 1 × 1.5 = 1.5 |
| Machine dimension (L × B × H) | mm | 1020 × 700 × 1500 |
| Approx. net weight | kg | 100 |
