Edge Bander

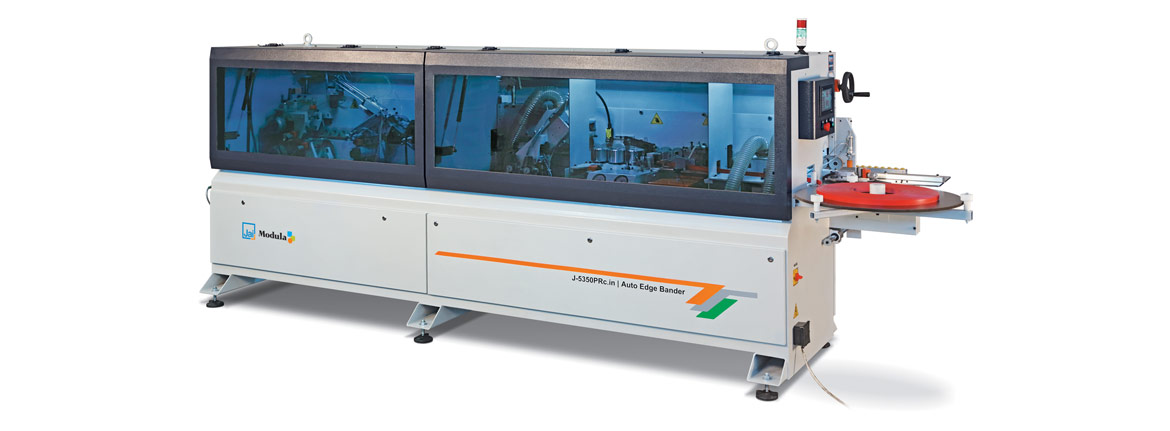

Model: J-5350PRc.in
Salient Features :-
- Sturdily built heavy-duty machine to suit Indian working condition for precise application of edge banding material.
- Robust feed chain & conveyor system with German gearbox (with long life synthetics lubricant) for effective pressure on panels.
- High performance machine with feeding speed 11 m/min gives more production.
- Pre-Milling unit with set of diamond cutters, as standard supply with machine.
- Three edge banding pressure rollers actuated by pneumatic cylinders, gives adequate pressure on edge for effective banding.
- High frequency compact motors sliding on prismatic guide ways for perfect finishing with trouble free performance.
- Overall meter run (OMR) of edge band tape is display in PLC.
- Project meter run (PMR) is to calculate total usage of edge band tape in a particular project.
- Stand By Mode : Automatic lowering of the glue temperature after a temporary non-use of the machine.
- Easy accessible, user friendly Smart Touch PLC control panel positioned at machine infeed, for quick operations. The corner rounding unit is controlled from the control panel, with the option of choosing the shape of panel.
- All electronic & pneumatic parts are from well known international brands.
- Very easy to operate & nominal setting required during operation.
- Low maintenance m/c, easy available cost effective spares, best service support.
Pre-Milling :
An optimal unit for panel edge pre-milling with two high frequency compact motors. Diamond cutters are standard supply with the machine. Individual pneumatic cylinder for perfect prepares the panel for gluing. Smoothes the panel for achieving perfect joint line of the edge.
The Feed Track :
Robust feed chain & conveyor system with German gearbox gives straight movement & effective pressure on small / big panels.
Gluing, Banding & Edge Cutting :
Glue spreading roller provides precise & consistent glue application. Perfect adhesion to the applied edge with 3 heavy duty pressure rollers actuated by pneumatic cylinders. Heavy duty knife with pneumatic pressure cuts the edge banding materials up to 50 mm height & 3 mm thickness. Edging wooden strip up to 10 mm
End Cutting :
Compact and powerful high frequency two independent motors guarantees best finish on edge, sliding on two prismatic guideways with recirculation ball bearings.
Edge Fine Trimming :
Compact and powerful high frequency two motors guarantees best finish on edge. Trimmer 2R cutter for PVC/ABS gives perfect rounding on edge of straight panel.
2 Motor Round Cornering :
Compact and powerful high frequency two motors guarantees best finish on edge, sliding on two prismatic guideways with recirculation ball bearings. Trimmer 2R cutter for PVC/ABS gives perfect rounding on edge of straight, chamfered and regular post formed panel.
Edge Scraping & Anti Adhesion Liquid :
Gives the best finishing touch to the PVC/ABS edges, leaving no trimming marks on the panel. Unit complete with rotating copiers. In order to prevent glue to adhere on panel, this liquid is sprayed to lower & upper edge surface of the panel.
Buffing :
Independently adjustable buffing wheels, for cleaning & polishing of the panel edges
Control Panel :
Easy accessible user friendly Smart Touch PLC control panel positioned at machine in-feed, for easy & quick operations.
| Model No | Unit | J-5350R.in | J-5350PR.in |
|---|---|---|---|
| Work piece thickness range | mm | 10 – 50 | 10 – 50 |
| Minimum work piece width | mm | 120 | 120 |
| Minimum work piece length | mm | 150 | 150 |
| Edge banding thickness for PVC & ABS in coil form | mm | 0.4 – 3 | 0.4 – 3 |
| Work piece feed | m/min | 11 | 11 |
| Pre-milling motor power | no / hp | – | 2 × 2 |
| End cutting motor power | no / hp | 2 × 0.5 | 2 × 0.5 |
| Fine Trimming and Round Cornering motor power | no / hp | 2 × 1 | 2 × 1 |
| Buffing motor power | no / hp | 2 × 0.5 | 2 × 0.5 |
| Air pressure required | kg/cm² | 6 to 7 | 6 to 7 |
| Working temperature range | °C | 180 – 200 | 180 – 200 |
| Glue pot capacity | kg | 2 | 2 |
| Total power | hp | 8.5 | 12.5 |
| Machine Dimensions (L × B × H) | mm | 4070 × 950 × 1485 | 4570 × 950 × 1485 |
| Approx. net weight | kg | 1290 | 1440 |
