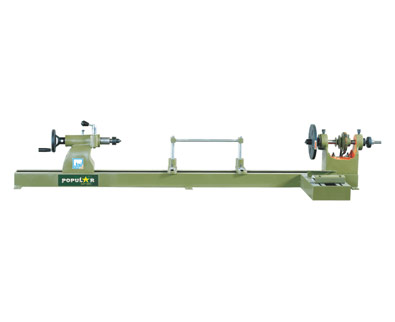

Turning Lathes (Light Duty)
For medium / small scale furniture unit, bench type model for applications to produce cylindrical articles.
Turning is used to reduce the diameter of the workpiece, usually to produce specified cylindrical items like, table legs, bed posts, stair rails etc… Three defferent speed for appropriate cutting operation.
- Model No.
- J-922, J-932
Model
| Model | J-922 6ft. |
J-932 8ft. |
|---|---|---|
| mm / inch | mm / inch | |
| Length of bed | 1825 / 72" | 2435 / 96" |
| Width of bed | 130 / 5" | 130 / 5" |
| Height of centers | 165 / 6½" | 165 / 6½" |
| Admit between centers | 1220 / 48" | 1830 / 72" |
| Approx. spindle speed - RPM | 700 / 1400 / 2800 | 700 / 1400 / 2800 |
| Face plate diameter | 190 / 7½" | 190 / 7½" |
| Power required - HP / RPM | 1 / 1440 | 1 / 1440 |
| Approx. wt. of machine - kg | 70 | 80 |
Standard Accessories :-
Face plate, 3 pin centre, revolving – centre, V-belt, motor pulley, motor fixing stand, motor rail & m/c manual.
