Model : OptiBore 6.12

Redefining Panel Processing Technology

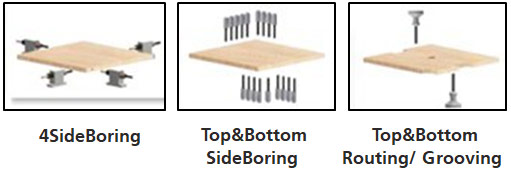

Finish six sides boring and top/bottom routing or grooving operation in one-time full automatically.
Sturdy built heavy-duty machine to suit Indian working condition for precise boring and routing application.
High performance machine with High feeding speed gives more production.
Equipped with SYNTEC control system and integrated CAM software can edit image of the work pieces and generating NC program directly for processing.
Processing files can be uploaded automatically by scanning bar code and generating NC program for processing.
Auto side aligner position the board from the side tightly to ensure precise gripping.

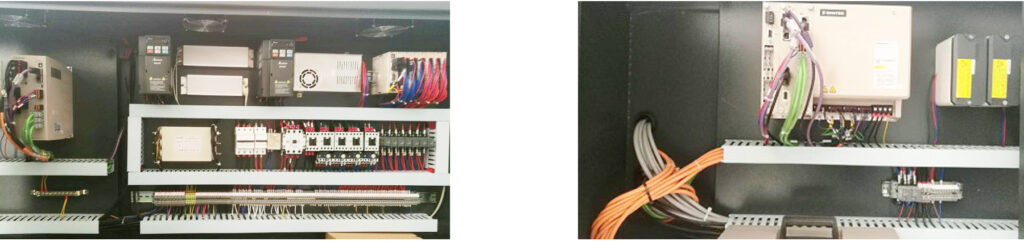

All electronic & pneumatic parts are from well-known international brands.
Able to connect with management / design software, achieve auto operating with digital control.
Ensuring longer machine life, safe operation, reduced unscheduled downtime and more economical operation costs.
Low maintenance m/c, easy available cost effective spares, best service support.

OptiBore 6.12 — Specifications

Model	Unit / Item	OptiBore 6.12
Control system		21" PC with syntec control system
Work piece Processing size	Panel width - max / min	1200 mm / 50 mm
	Panel length - max / min	5000 mm / 250 mm
	Panel thickness - max / min	48 mm / 12 mm
Axis travel & maximum positioning speed	X & U - Axis	5000 mm & 130 m / min
	Y - Axis	1680 mm & 70 m / min
	Z - Axis	90 mm & 40 m / min
	V - Axis	1200 mm & 80 m / min
	W - Axis	100 mm & 40 m / min
	A - Axis	1260 mm & 35 m / min
	Boring unit :	Vertical drilling bit - top	12 = 7 (X Axis) + 5 (Y Axis)
	Vertical drilling bit - bottom	9
	Horizontal drilling bit	2 (Left) + 2 (Right) and 2 (Front) + 2 (Back)
	Motor power	2.2 kW (3 hp)
Routing unit spindle x 2 :	Router spindle power	3.5 kW (5 hp)
	Spindle speed	2 / 18000 rpm
	Working table height	1020 mm
Other specifications :	Air pressure	6 to 8 kg / cm²
	Total power	19.2 kW (25.5 hp)
	Machine dimensions L × B × H	6700 × 2900 × 2450 mm
	Approx. net weight	2500 kg
