Redefining Panel Processing Technology
Model : OptiDrill 2.6 Six Head Boring
Salient Features :-
- Sturdily built heavy duty machine to suit Indian working condition for precise burr free boring.
- Strengthened frame to hold boring heads.
- Boring machine with 4 no’s vertical & 2 no’s horizontal boring head units designed to execute holes in a line as well as holes for panel matching.
- Quick précised & easy setting -up.
- The vertical boring units slide on heavy rolling guides for a prompt & easy positioning with digital read out.
- Vertical boring units can be turned 90° in order to execute both central and side holes during the same working cycles.
- With cast iron boring heads, highest accuracy & sturdiness, noise is minimized.
- Foot switch for convenient operation of the m/c.
- All electronic parts are from well-known international brands.
- Low maintenance m/c, easy available cost effective spares, best service support.

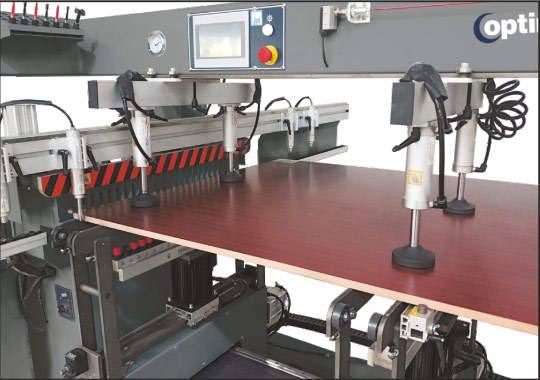

Length wise movement of heavy duty precision vertical boring heads on heavy linear rolling guides for a prompt & easy positioning with digital readout.
The two vertical heads can slide away from each other depending on the center distance required between them. They can also be rotated by 90° giving more locational positioning. Auxiliary support frame with fence gives better solution for long panels.
The Aluminum fence with support rollers has four reference stops that slides smoothly for smooth positioning. This makes it easy to feed long workpieces. Second vertical head assembly has also reference stopper for perfect side position alignment of longer workpiece.
Quick adjustment & easy setting of horizontal boring head unit. Boring depth can be also easily adjustable. Unit has pneumatically operated solid clamp for proper clamping of work piece at front end during boring process.
User friendly Smart Touch PLC Control Panel.
OptiDrill 2.6 — Specifications
| Model | Unit | OptiDrill 2.6 |
|---|---|---|
| Maximum working thickness | mm | 60 |
| Maximum size of work piece | mm | 2500 × 640 |
| Number of spindle head | no. | Six (Two Horizontal & Four Vertical) |
| Number of spindle head | no. | 21 |
| Total spindles | nos. | 21 × 6 = 126 |
| Shank diameter of drill | mm | 10 |
| Spindle rotation speed | rpm | 2800 |
| Maximum drilling diameter | mm | 32 |
| Drilling depth | mm | 0 ~ 50 (drill length 70 mm) |
| Compressed air required | Kg / cm² | 6 to 8 |
| Electric motor – 3 phase | hp | 6 no’s × 2 hp = 12 |
| Machine dimension (L × B × H) | mm | 4400 × 3050 × 1650 |
| Approx. net weight | kg | 1700 |
