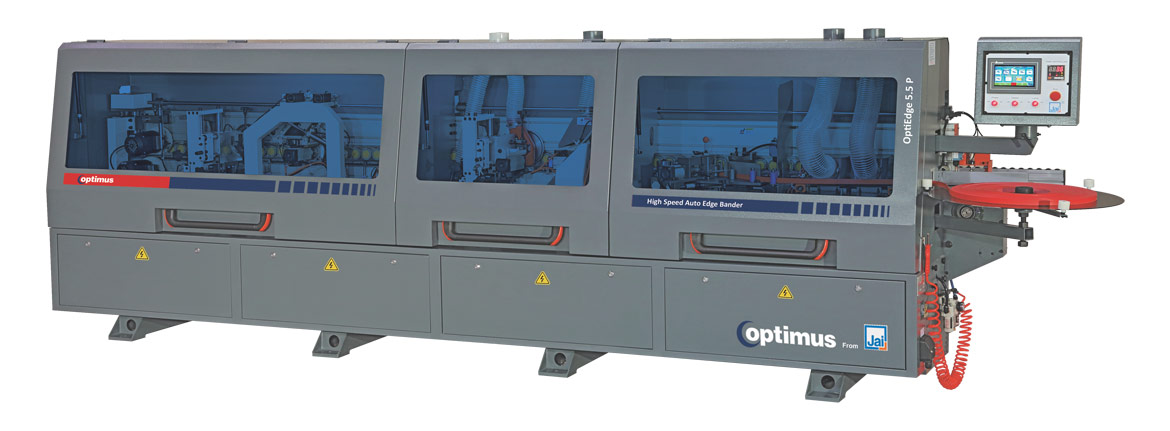

Model : OptiEdge 5.5 P
Salient Features :-
- High performance machine with High feeding speed up to 18 m/min gives more production.
- Pre-Milling unit with diamond milling cutter for chip free glue joints.
- Easy accessible, user friendly Smart Touch PLC control panel. The Corner rounding unit is controlled from the control panel, with the option of choosing the shape of panel.
- Motorized up-down movement of pressure beam for easy thickness setting.
- Safety air tank provision for non-dropping of air during process.
- High frequency motors sliding on heavy prismatic guide ways for perfect finishing with trouble free performance.
- Automatic lubrication system circulates lubrication to the required parts of the machine, ensures efficient operation and increase life of parts.
- Glue spreading roller provides precise & consistent glue application. Perfect adhesion to the applied edge with heavy duty pressure rollers.
- Robust feed chain & conveyor system with heavy duty gearbox for effective pressure on panels.
- All electronic & pneumatic parts are from well-known international brands.
- Low maintenance m/c, easy available cost effective spares, best after sales service support.
The Feed Track
Robust feed chain & conveyor system with heavy duty gearbox gives straight movement & effective pressure on small / big panels.

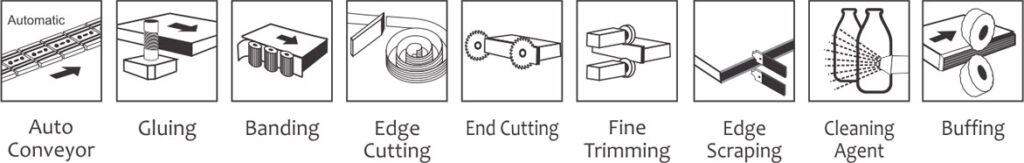

Gluing, Banding & Edge Cutting
Glue spreading roller provides precise & consistent glue application. Perfect adhesion to the applied edge with 4 heavy duty pressure rollers. Heavy duty knife with pneumatic pressure cuts the edge banding materials smoothly up to 60 mm height & 3 mm thickness.
End Cutting
Compact and powerful high frequency two motors guarantees perfect finish on edge, sliding on two prismatic heavy guideways with recirculation ball bearings.
Fine Trimming
Compact and powerful high frequency two motors guarantees perfect finish on edge. High level finishing thanks to the sturdy & heavy duty structure which is free of any vibration. Trimmer 2R cutter trims the perfect finishing on straight edge of panel.
Edge Scraping
Gives the best finishing touch to the PVC/ABS edges, leaving no trimming marks on the panel. Unit complete with rotating copiers.
Cleaning Agent
In order to prevent glue to adhere on panel, cleaning liquid is sprayed to lower & upper edge surface of the panel.
Buffing
Independently adjustable buffing wheels, for cleaning & polishing of the panel. It can be adjustable at a particular angle to maximize it's effect for perfect finshing of workpiece & increase the life of buffing wheels.
Auto Lubrication
Automatic lubrication system circulates lubrication to the required parts of the machine, ensures efficient operation and increase life of parts.
Pressure Beam Up-down
Motorized up-down movement of pressure beam for easy thickness setting for quick operation from control panel.
Thickness can be showed on a separate position indicator.

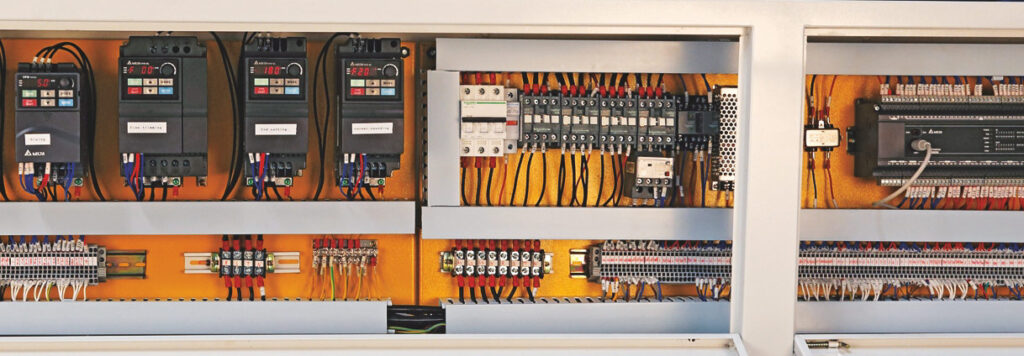

Control Panel
Easy accessible user friendly Smart Touch PLC control panel positioned at machine in-feed, for easy & quick operations.
Air pressure safety tank is provided to ensure non-dropping of air during process.
| Model | Unit | OptiEdge 5.5 | OptiEdge 5.5P |
|---|---|---|---|
| Work piece thickness range | mm | 12 - 50 | 12 - 50 |
| Minimum work piece width | mm | 80 | 80 |
| Minimum work piece length | mm | 120 | 120 |
| Edge banding thickness for PVC & ABS in coil form | mm | 0.4 - 3.0 | 0.4 - 3.0 |
| Work piece feeding speed | m/min | 18 | 18 |
| Pre-milling motor power | no / hp | n/a | 2 × 3 |
| Round cornering motor power | no / hp | 2 × 0.5 | 2 × 0.5 |
| Buffing motor power | no / hp | 2 × 0.5 | 2 × 0.5 |
| Compressed air required | kg/cm² | 6 to 8 | 6 to 8 |
| Working temperature range | °C | 180 - 200 | 180 - 200 |
| Glue pot capacity | kg | 11.33 | 20 |
| Total power | hp | 11.33 | 17.33 |
| Machine dimension (L × B × H) | mm | 5200 × 1200 × 1600 | 5800 × 1200 × 1600 |
| Approx. net weight | kg | 1300 | 1500 |
