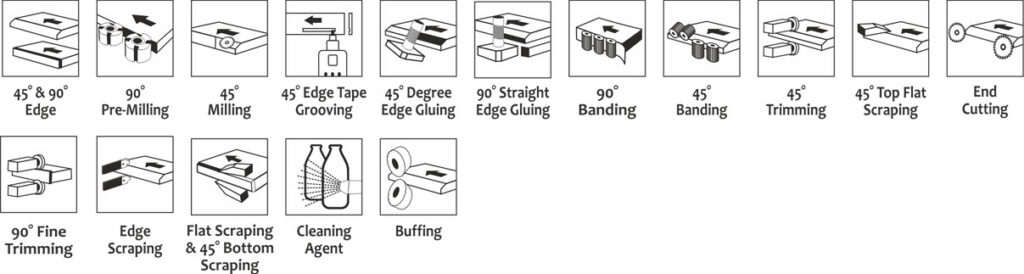

An optimal unit for panel edge pre-milling with two heavy duty high frequency motors supplied with set of diamond cutters, as standard supply with machine.
An optimal unit to make panel edge 45°, with 5 hp heavy duty high frequency motor in single pass.
An optimal unit for edge tape grooving to make proper banding with panel with diamond groove cutter, as standard supply with machine.
Robust feed chain & conveyor system with heavy duty gearbox gives straight movement effective pressure on small / big panels.
Compact and powerful high frequency two motors guarantees perfect finish on edge. High level finishing thanks to the sturdy & heavy duty structure which is free of any vibration. Trimmer cutter trims the perfect finishing on straight edge of panel. 45° Top Flat Scrapping Gives the best finishing touch to the PVC/ABS edges, leaving no trimming marks on the panel. Unit complete with rotating copiers.
Compact and powerful high frequency two motors guarantees perfect finish on edge, sliding on two prismatic heavy guideways with recirculation ball bearings.
In order to prevent glue to adhere on panel, cleaning liquid is sprayed to lower & upper edge surface of the panel.
Perfect straight & degree edge banding finishing by dual unit. Independently adjustable buffing wheels, for cleaning & polishing of the panel. It can be adjustable at a particular angle to maximize its effect for perfect finishing of workpiece & increase the life of buffing wheels.
Easy accessible user friendly Smart Touch PLC control panel positioned at machine in-feed, for easy & quick operations.
Easy accessible user friendly Smart Touch PLC control panel positioned at machine in-feed, for easy & quick operations.
Automatic lubrication system circulates lubrication to the required parts of the machine, ensures efficient operation and increase life of parts.

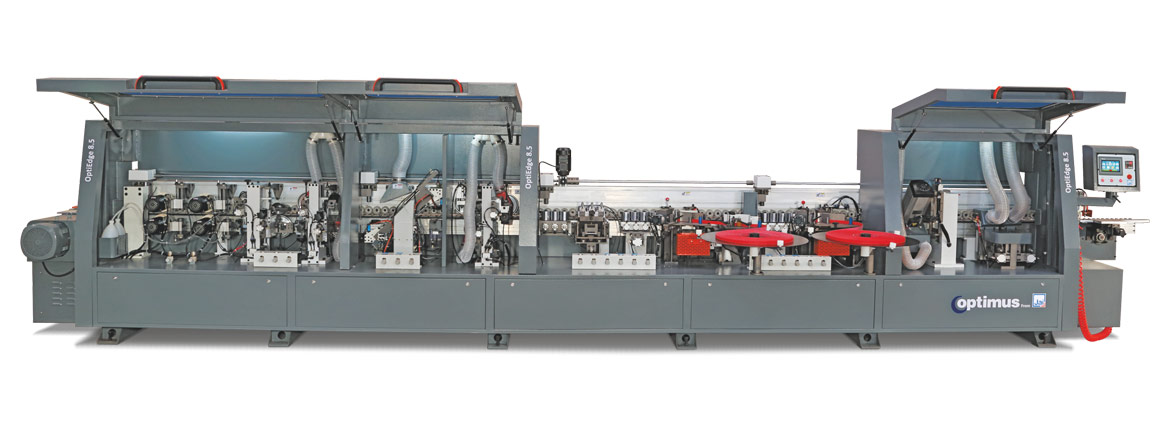

| Model | Unit | OptiEdge 8.5 |
|---|---|---|
| Work piece thickness range | ||
| - Inclined 45° edge | mm | 10 - 25 |
| - Full straight 90° edge | mm | 10 - 60 |
| Work piece size - Width × Length | ||
| - Inclined 45° edge | mm | 120 - 150 |
| - Full straight 90° edge | mm | 80 - 120 |
| Edge banding thickness for PVC & ABS in coil form | ||
| - Inclined 45° edge | mm | 0.4 - 2.0 |
| - Full straight 90° edge | mm | 0.4 - 3.0 |
| Work piece feeding speed | ||
| - Inclined 45° edge | m/min | 15 |
| - Full straight 90° edge | m/min | 15 - 20 - 25 |
| Pre-milling motor power | no / hp | 2 × 3 |
| 45° milling motor power | no / hp | 1 × 5 |
| End cutting motor power | no / hp | 2 × 0.5 |
| 90° & 45° Trimming motor power | no / hp | 4 × 1 |
| Buffing motor power | no / hp | 2 × 0.5 |
| Air pressure required | kg/cm² | 6 to 8 |
| Working temperature range | °C | 180 - 200 |
| Glue pot capacity | kg | 2.0 |
| Total power | hp | 32.5 |
| Machine dimension (L × B × H) | mm | 8200 × 1530 × 1600 |
| Approx. net weight | kg | 2700 |
