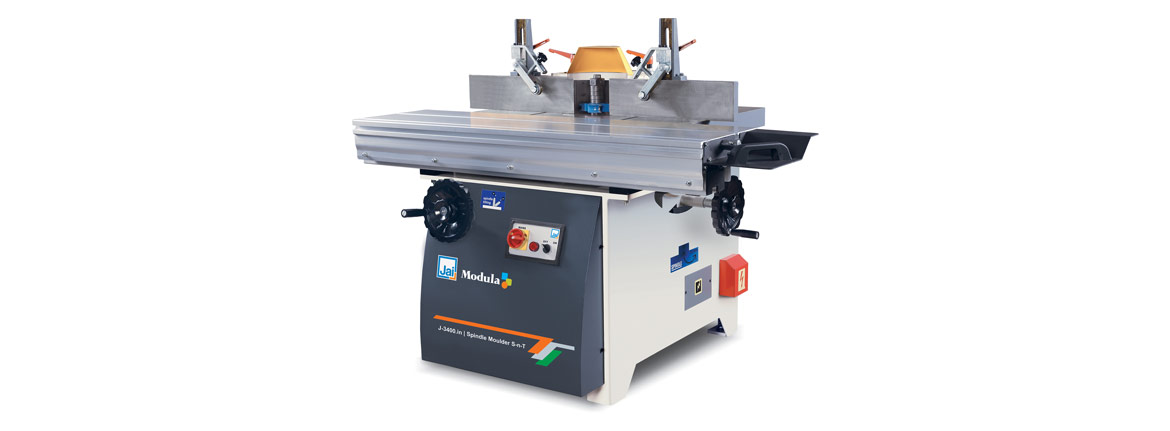

Spindle Moulder J-3400.in
Salient Features :-
- The hard anodized 1300 x 360 mm wide aluminum extrusion sliding table is precision machined
- Ground & electronically balanced spindle for vibration free operation
- Easy & convenient system for locking of spindle shaft
- Spindle driven by motors through V-belts and are housed in sealed bearings; thus ensuring minimum maintenance
- 2 spindle speeds 6000 / 8000 rpm for selection depending on tool diameter
- Dust chute is provided on fence assembly for dust evacuation

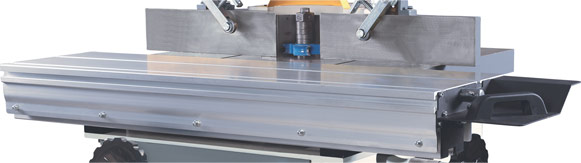

1300 mm hard anodized sliding table is precision for easy functioning.
A heavy duty an aluminium extruded adjustable side reference fence with infeed and outfeed pressure bearing supports.
Tenoning Clamp : A mitre gauge with heavy duty wood clamp for tenoning work & aluminum reference fence with flip over stop.
Auto Feeder : (Optional) For auto feeding of workpiece & can be bought any time separately
| Model No | Unit | J-3400.in |
|---|---|---|
| Fix table size | mm | 865 × 550 |
| Sliding table length | mm | 1300 |
| Sliding table width | mm | 360 |
| Spindle diameter | mm | 30 |
| Up / Down movement of spindle | mm | 100 |
| Arbor tilt | degree | 45° |
| Spindle speed | rpm | 6000 / 8000 |
| Max. molding block width | mm | 100 |
| Dust extraction port diameter | mm | 100 |
| Electrical motor - 3 phase | hp | 5 |
| Machine dimensions (L × B × H) | mm | 1500 × 1300 × 1200 |
| Approx. net weight | kg | 400 |
Auto Feeder (Heavy Duty) (Optional-can be ordered any time for Model Nos : J-1504(ST) & J-1504)
Auto feeding of workpiece with safety improves production, reduce cost and better finishing with accuracy.
Setting the available speed is a combination of motor speed (Pole change by switch, R/F) & gear setting. Speed is very important to achieve efficiency & quality of workpiece.
*3 Rollers * 8 speed
*1 hp 3 - phase motor
